Lieu d'origine:
LA CHINE
Nom de marque:
OEM ODM
Certification:
CE
Numéro de modèle:
10/100M convertisseur optique de 2 de ports médias de fibre
Nous contacter
Description:

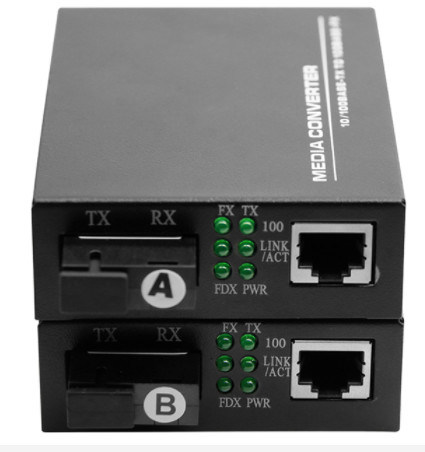

100Mbps Fiber Media Converter with 10/100M single mode Single Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Ethernet can be extended to the distance of 100km through Single Optical Fiber link.
10/100M adaptive fast Ethernet optical media converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100 Base-TX and 100 Base-Fx network segments, meeting long-distance, high-speed and high broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 120 km's relay-free computer data network.
Technical Parameters :
In accordance with Ethernet standards IEEE802.3 10Base-T, IEEE802.3u 100Base-T and 100Base-FX
Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port
External and built-in DC power supplies provided 128 K's data buffer RAM
Support for low-delay time pure data transmission and full/half-duplex flow control.
Built-in watch-dog timer to monitor any error in internal data exchange
